Treegrid - columns and cell editors

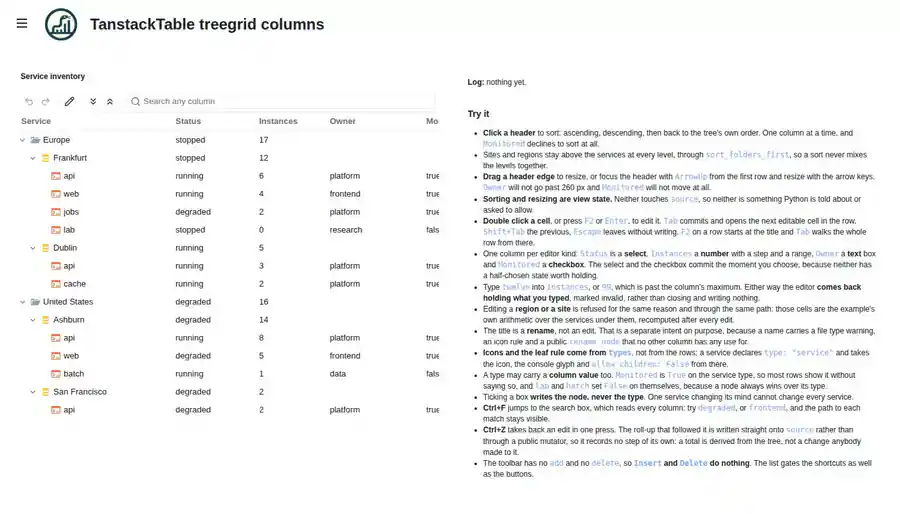

TanstackTable treegrid with five columns, sorting, and inline cell editors

Source: examples/panels/tanstack/table/tst_treegrid_columns.py Test: tests/panels/tanstack/table/examples/test_tst_treegrid_columns.py

A service inventory: regions, sites and the services under them. The tree’s shape never changes here - no drag, no add, no delete. What changes is the cells, so this is the grid half of the panel on its own: one column per editor kind, node types supplying defaults, and a veto that keeps computed rows read only.

Features on display

  • Five columns, one per editor kind: Status a select, Instances a number with step, min and max, Owner a text box, Monitored a checkbox, plus the tree column.

  • Sorting cycles ascending, descending, then the tree’s own order. Monitored declines with sortable: False.

  • sort_folders_first keeps sites and regions above services at every level.

  • Resizing bounded by min_width / max_width; Monitored declines with resizable: False.

  • Node types: region, site and service supply icon, allow_children and even a column value (monitored), and a node always wins over its type.

  • A refused edit on a group row reopens the editor holding what was typed, marked aria-invalid.

  • Roll-up arithmetic written straight onto source, so one Ctrl+Z reaches the edit rather than the totals.

The wiring

columns = [
    {"id": "title", "header": "Service", "width": 240, "min_width": 160},
    {
        "id": "status",
        "header": "Status",
        "width": 130,
        "min_width": 100,
        "editable": True,
        "editor": "select",
        "choices": STATUSES,
    },
    {
        "id": "instances",
        "header": "Instances",
        "width": 110,
        "editable": True,
        "editor": "number",
        "step": 1,
        "min": 0,
        "max": 64,
    },
    {"id": "owner", "header": "Owner", "width": 150, "editable": True, "max_width": 260},
    {
        "id": "monitored",
        "header": "Monitored",
        "width": 110,
        "editable": True,
        "editor": "checkbox",
        "sortable": False,
        "resizable": False,
    },
]

table = TanstackTable(
    source=source,
    columns=columns,
    types=TYPES,
    options={
        "aria_label": "Service inventory",
        "expand_all": True,
        "enable_dnd": False,
        "select_mode": "single",
        "show_checkboxes": False,
        "sort_folders_first": True,
        "search_label": "Search any column",
        "toolbar": ["undo", "redo", "|", "rename", "|", "expand-all", "collapse-all", "|", "search"],
    },
    event_callback=on_event,
    action_callback=allow_action,
    sizing_mode="stretch_both",
)

Key points:

  • TYPES declares icon, allow_children and monitored once per kind instead of once per row.

  • allow_action returns False for an edit on a row that has children, because those cells are the example’s own arithmetic.

  • on_event recomputes the totals after an edit that landed, writing table.source directly so the roll-up records no undo step of its own.

  • The toolbar list carries no new-folder, new-file or delete, and because the list gates the shortcuts too, Insert and Delete do nothing at all here.

How the test exercises it

  • Render: the five headers appear in order, and aria-rowcount equals the node count plus the header row.

  • One test per editor kind: the select and the checkbox commit the moment you choose; the number column lands in source as an int, not the string that was typed; the text box writes on Enter.

  • Types: ticking lab’s checkbox writes that node and leaves TYPES["service"]["monitored"] untouched.

  • Roll-up: an edit propagates into the site and the region above it, and the group’s owner stays blank.

  • Undo: one Ctrl+Z reaches the edit past the roll-up, and the tree it lands on is consistent.

  • Veto: an edit on a group row leaves source alone, reopens the editor with aria-invalid="true" holding the rejected value, and shows up in the example’s log.

Run it live

This example runs entirely in your browser via Pyodide. The first load downloads packages, so give it a few seconds.

Open fullscreen
