TanstackTable

The TanstackTable panel is an accessible tree and treegrid widget built on TanStack Table, wrapped in a Vue.js bridge. It renders a plain list of dicts as a tree, or as a tree plus columns, with a toolbar, drag and drop, inline editing, undo and a full ARIA treegrid.

The one idea: data flows one way

Python owns source. The browser never writes it.

1. The user does something. The browser emits an intent (move, add, rename, edit, delete, cut, copy, paste, transfer, drop_files, undo, redo, lazy_load) through _event_data.

2. Python validates it, asks your callbacks, and rewrites source.

3. The new tree is pushed back down.

So every rule about how the tree reshapes lives in Python, is testable without a browser, and cannot be bypassed by a hand-built event.

Basic usage

Nodes are plain dicts. key and title are the only required fields; children nests them.

from panelini.panels.tanstack.table import TanstackTable

source = [
    {
        "key": "docs",
        "title": "Documents",
        "children": [
            {"key": "report", "title": "report.pdf", "allow_children": False},
            {"key": "notes", "title": "notes.md", "allow_children": False},
        ],
    },
    {"key": "config", "title": "config.yaml", "allow_children": False},
]

table = TanstackTable(source=source, options={"expand_all": True})

Add columns to switch from tree-only mode to treegrid mode.

Node fields

Field	Meaning
key	Unique id. Everything else refers to a node by it.
title	The label in the tree column.
children	Child nodes.
icon	Names an entry of icons. An expanded node prefers <name>-open.
allow_children	False makes the node a leaf nothing can be dropped into.
class	A CSS class for the row.
type	Names an entry of types, whose fields the node inherits.
lazy	True for a branch whose children are not loaded yet.
anything else	Column data, read by the column’s field (or its id).

Parameters

Direction is P>B (Python to browser), B>P (browser to Python), both, or Python only for a value the browser never reads.

Parameter	Type	Direction	What it is
source	list	Python only	The tree. Python’s to write; never sent as-is (a derived view crosses instead).
columns	list	P>B	Column definitions. Empty means tree-only mode.
options	dict	P>B	Display and behaviour options, see below.
icons	dict	P>B	Extra {name: inline SVG} merged over the bundled set.
types	dict	P>B	{type name: {field: value}} node defaults.
filter_text	str	both	Search text. Hides rows that neither match nor lead to a match.
editing_key	str	both	Row the inline editor is open on, "" for none.
editing_column	str	both	Column it is open on, "" for the tree column (a rename).
sorting	list	both	[{"id", "desc"}], one entry at most. View only.
column_widths	dict	both	{column_id: pixels} a resize has set.
expanded_keys	list	both	Keys of the expanded nodes.
selected_keys	list	both	Keys of the selected nodes.
undo_depth	int	Python only	How many tree states to keep, default 20, 0 for no history.
can_undo / can_redo	bool	P>B	Whether a step is available. Drives the toolbar buttons.
clipboard	dict	P>B	{keys, mode} with mode in cut / copy, empty for nothing.

Sorting, resizing and filtering are view state: they never touch source, so nothing about them is recorded for undo.

Columns

A column def is a dict.

Key	Default	What it does
id	required	Column id. Also the node field, unless field says otherwise.
header	id	Header label.
field	id	Node field this column reads and writes.
width	150	Starting width in pixels.
min_width / max_width	20 / none	Bounds a resize drag may not cross.
sortable	True	False leaves this one column out of the sort.
resizable	True	False fixes this one column’s width.
editable	False	True opens an inline editor on the cells.
editor	"text"	text, number, checkbox or select.
choices	-	What a select column offers.
step, min, max	-	For a number column. The range is checked in Python too.

The first column is the tree column, whatever it declares: it carries the indent, the twisty, the icon and the title, and it is renamed rather than edited.

Options

Key	Default	What it does
aria_label	"Tree table"	Names the treegrid for assistive technology.
indent_px	16	Indent per tree level, in pixels.
expand_all	False	Keep every branch open, including branches that arrive later.
enable_dnd	False	Turn drag and drop on.
select_mode	"none"	none, single, multi or hierarchy.
show_checkboxes	True	False hides the checkbox column without giving up selection.
toggle_on_click	False	A click on the only selected row clears the selection.
toolbar	absent	Ordered list of action ids, or True for the default set. Absent means no toolbar.
menu	absent	The same ids, as a right-click context menu. True gives its own shorter default set.
row_actions	absent	The same ids again, as buttons at the trailing edge of every row.
toolbar_label, menu_label, search_label	"Tree actions", "Row actions", "Search"	Accessible names for those three.
sortable	True	False takes the sort off the whole table.
sort_folders_first	False	Branches above leaves at every level, whichever way a column is sorted.
resizable	True	False takes the resize handles off the headers.
prune	off	"collapsed" sends only the branches the browser has opened.
transfer_group	-	Two tables naming the same group accept each other’s dragged rows.
new_key_prefix	"node"	Prefix for keys minted for new nodes.
file_icons	-	Extra {extension: icon name} used when a file is added or renamed.
extension_warning	True	False drops the confirmation a rename that changes a file type asks for.
drop_files	"none"	"meta" or "content" to take files dragged in from the desktop.
drop_accept	[] (anything)	Extensions and MIME patterns: ".png", "image/*", "application/pdf".
drop_max_bytes	5_000_000	Cap on one dropped file.
drop_node	-	Template a dropped file’s node is minted from.

drop_accept and drop_max_bytes are decided in Python. The browser reads them only to skip loading the bytes of a file that was going to be refused.

Toolbar, menu and row actions

toolbar, menu and row_actions take these ids, plus "|" for a separator:

Action id	Shortcut	What it does
new-folder / new-file	Insert / Shift+Insert	Mint a node beside the active row, or inside it.
rename	F2	Open the editor on the tree cell.
delete	Delete	Remove the selection.
cut / copy / paste	Ctrl+X / Ctrl+C / Ctrl+V	The clipboard, which Python holds.
undo / redo	Ctrl+Z / Ctrl+Shift+Z	Step the history.
move-up / move-down	Alt+Up / Alt+Down	Swap with the sibling above or below.
outdent / indent	Alt+Left / Alt+Right	Change the row’s depth by one.
select-all / clear-selection	Ctrl+A / Escape	The selection.
expand-all / collapse-all	none	Every branch at once.
search	Ctrl+F	The search box. Toolbar only; a menu drops it.

The three lists together are what the table may do, so an action left out of all of them cannot be reached by its shortcut either. An entry may also be a dict {id, label, icon, node} that relabels an action and sets the template its new node is minted from. That is what makes new-folder mint a folder and new-file a file, and it lets one id appear twice under two labels.

row_actions puts its buttons inside each row at the trailing edge, dimmed to 35% until the row is hovered or a button is focused, which is what makes an action reachable without a right click. "|" and search are dropped there, and the buttons carry no disabled state: an action is judged against the row it sits on, which it makes active before running. The buttons are out of the tab order, like the row checkbox, because the row itself carries the roving tabindex.

Editing

Set editable: True on a column and pick an editor.

editor	Control	Commits
text	text box	Enter, Tab, or clicking away
number	number input with step / min / max	same, after Python checks the range
checkbox	checkbox	the moment you tick it
select	dropdown of choices	the moment you choose

• Double click a cell to edit it. On a focused row, Enter opens the first editable cell (and activates the row instead when the table has none), while F2 is the tree column’s rename. Tab and Shift+Tab walk the row’s editable cells; Escape leaves without writing.

• A value the column cannot hold, or one action_callback refuses, reopens the editor holding what was typed, marked aria-invalid, so it is corrected rather than retyped.

• The value lands on the node itself, never on the type it names.

• The tree column is the exception: it is a rename intent, which carries the file-type warning and the icon rule.

Callbacks and vetoes

All five are constructor arguments.

Callback	Signature	Sees	Returning False
move_callback	(key, anchor_key, position)	every drag, Alt+Arrow reorder, and a paste of something cut. Called once per node.	cancels that node’s move
action_callback	(action, params)	add, rename, edit, delete, paste (of a copy), drop_files, transfer. Called once per action.	leaves source untouched
event_callback	(event_name, event_params)	every event, after Python has applied it	nothing; this one only reports
transfer_callback	(params)	a cross-pane drag whose partner is not a TanstackTable	falls back to the ordinary path
lazy_callback	(key, node)	the first expand of a node marked lazy	not a veto: return the child list, or None to answer later with set_children

• position is before, after or child.

• undo and redo are never asked: they replay states already allowed.

• A cross-pane transfer asks action_callback on the table the nodes leave, and move_callback on the table they arrive in.

• The thirteen intents come back carrying applied, so event_callback can tell what landed. Any other event is forwarded untouched, activate among them, which arrives with key alone.

def allow_move(key, anchor_key, position):
    return not (position == "child" and anchor_key == "archive")


def allow_action(action, params):
    return action != "delete"


table = TanstackTable(
    source=source,
    move_callback=allow_move,
    action_callback=allow_action,
    event_callback=lambda name, params: print(name, params.get("applied")),
)

Public API

Forty methods, grouped by what they touch. A method that reshapes the tree rewrites source and records an undo step, so an application’s change is undoable exactly like a user’s. Readers change nothing, selection, expansion, sort and width are view state, set_children fills a lazy branch, and set_source clears the history outright, so none of those are recorded.

Group	Methods
Tree edits	add_node, remove_node, move_node, move_nodes, update_node, rename_node, set_field, clear, get_source, set_source
Selection	get_selected, select_node, clear_selection
Expansion	get_expanded, expand_node, expand_all, collapse_all
Clipboard	get_clipboard, cut_nodes, copy_nodes, paste_nodes, transfer_nodes, clear_clipboard
History	undo, redo, clear_history, batch
Sort and width	get_sort, sort_by, clear_sort, get_column_widths, set_column_width, reset_column_width, clear_column_widths
Types	get_types, set_type, remove_type, resolve_node
Lazy loading	set_children
Events	handle_event

batch() is a context manager: everything inside it becomes one push and one undo step. A block of set_children calls is one push and no undo step, since a lazy branch arriving is not an edit.

with table.batch():
    for path in paths:
        table.add_node({"key": path, "title": path}, parent_key="docs")

Pure tree helpers live beside the panel in panelini.panels.tanstack.table.tree and import neither Panel nor param: iter_nodes, find_node, find_parent, is_descendant, subtree_keys, new_key and the rest.

Accessibility

This is why the panel exists.

• A real ARIA treegrid: rowgroup, row, columnheader, gridcell, plus toolbar, menu / menuitem and alertdialog for the rename confirmation.

• 20 aria-* attributes, including aria-level, aria-posinset, aria-setsize, aria-expanded, aria-selected, aria-rowindex, aria-colindex, aria-sort, aria-busy (a lazy branch loading), aria-invalid (a refused edit) and aria-keyshortcuts.

• Every structural action has a key, listed in the action table above. Arrow keys, Home and End navigate, Enter and Space activate and select, and the context menu opens on Shift+F10 or the menu key rather than only on a right click.

• A roving tabindex, so Tab stays the way out of the grid.

• Ctrl combinations are taken only while focus is inside the grid, so Ctrl+F does not steal the browser’s own find on the rest of the page.

Large trees

Two separate costs, two separate answers.

Cost	Answer	Effect
Render	a windowed rowgroup	only the visible rows plus a small overscan are in the DOM, however far you scroll
Wire	options["prune"] = "collapsed"	only opened branches cross; a pruned branch arrives as a twisty and is filled on expand

Pruning takes a ten thousand node tree from about 950 kB on the wire to about 6 kB when that tree is a hundred folders of a hundred files. The ratio follows the shape: the wider the fan-out, the more a collapsed view leaves behind, and the big tree example’s thousand folders of ten measures about ten times rather than a hundred and fifty. It is off by default, because it also means a search reaches unloaded branches through Python rather than through the browser alone.

Two things to know before turning it on. A branch that has crossed stays with the browser when it is collapsed again, which is what makes re-opening it instant, so the wire cost of a session only ever grows. And the toolbar’s expand-all opens the rows the browser holds, so it cannot open a branch that has not crossed: call expand_all() from Python instead, which reads the tree Python owns and sends what the browser is missing.

Mark a branch lazy: True and answer lazy_callback to build a tree that never fully exists in memory at all. See Filesystem browser - lazy loading from a real backend.

Examples

• Treegrid - columns and cell editors - five columns, sorting, resizing, node types, all four cell editors

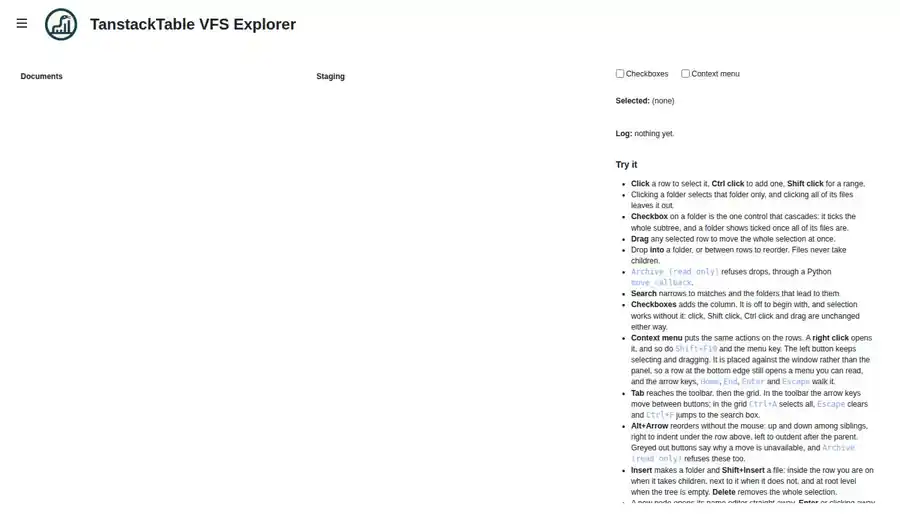

• VFS explorer - two panes and external file drop - two panes, cross-pane drag, toolbar, context menu, files from the desktop

• Big tree - one node to a million, and what each size costs - one node to a million, with the wire cost of each read out live

• Filesystem browser - lazy loading from a real backend - a real filesystem loaded one directory at a time

API Reference

See the full API documentation: panelini.panels.tanstack.table.table.TanstackTable
